Nautilus Talk connects a voice channel into Zendesk’s Support's ticketing platform—allowing agents to easily pick up the conversation from any channel and resolve complex issues faster.

The Nautilus Talk Web Phone console is embedded into the  Zendesk Support Suite, which gives agents access to full customer context, allowing them to handle calls in the same workspace as other channels.

This article will cover the following:

1. Getting Started
2. Agent Experience Upon Log In
3. Troubleshooting
   How to enable permissions on your browser
   Clearing browser cache (Google Chrome)
   Clearing browser cache (Firefox)
   Webphone Test
4. Agent Break Codes
5. Receiving an Inbound Call from the Queue
6. Agent on an Active Call
7. Performing an Outbound Call
8. Call Details and Call Recording Update in Ticket
9. Anonymous Call and Ticket Handling
10. Voicemail
11. Internal Call
12. User Responsibilities



Getting Started

1) On your Internet browser (preferably Google Chrome's latest version), go to your Zendesk Support Portal to login using your own credential.

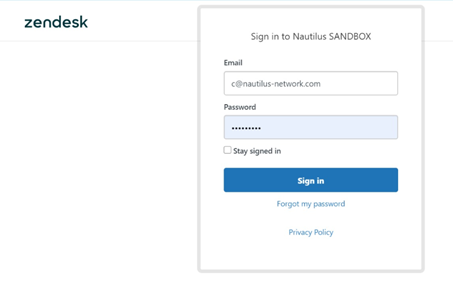

2) Click Sign in to access the Zendesk Support Portal which will present the agent View as noted below:

3) Click at the Nautilus Talk Icon to open Nautilus Talk Web Phone.



Maximizing your Nautilus Talk Experience

To ensure optimal use of your Nautilus Talk, make sure to disable memory saver on your browser. This will prioritize the Reporting Portal and Web Phone and ensures your tools stay up and active.

a. Go to Chrome browser settings

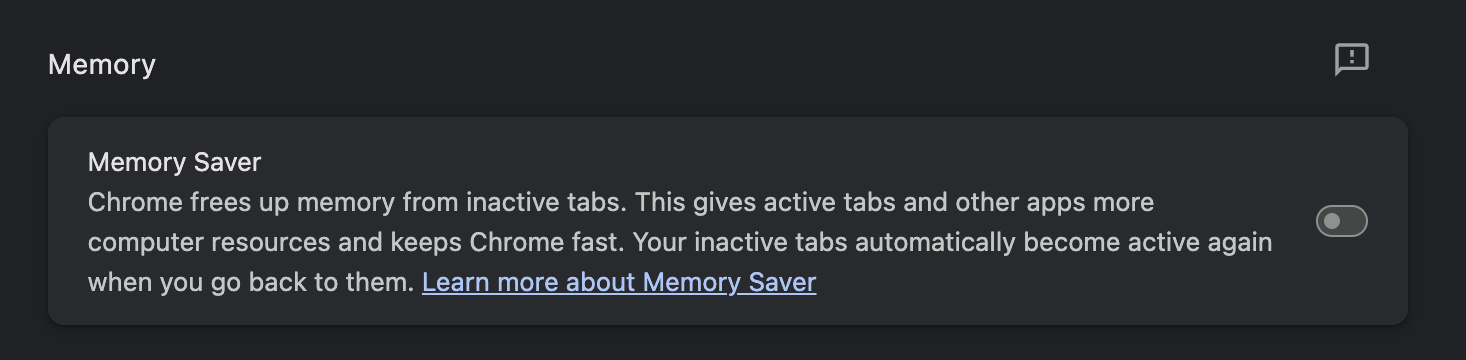

b. Search for “Memory” and disable the Memory Saver option. Alternatively, this can be found under the "Performance" tab.

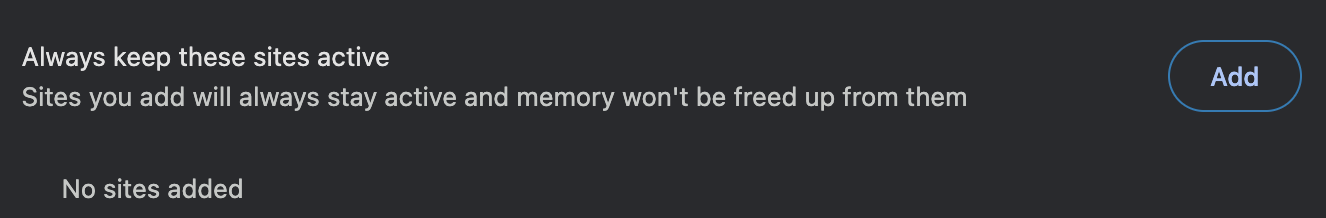

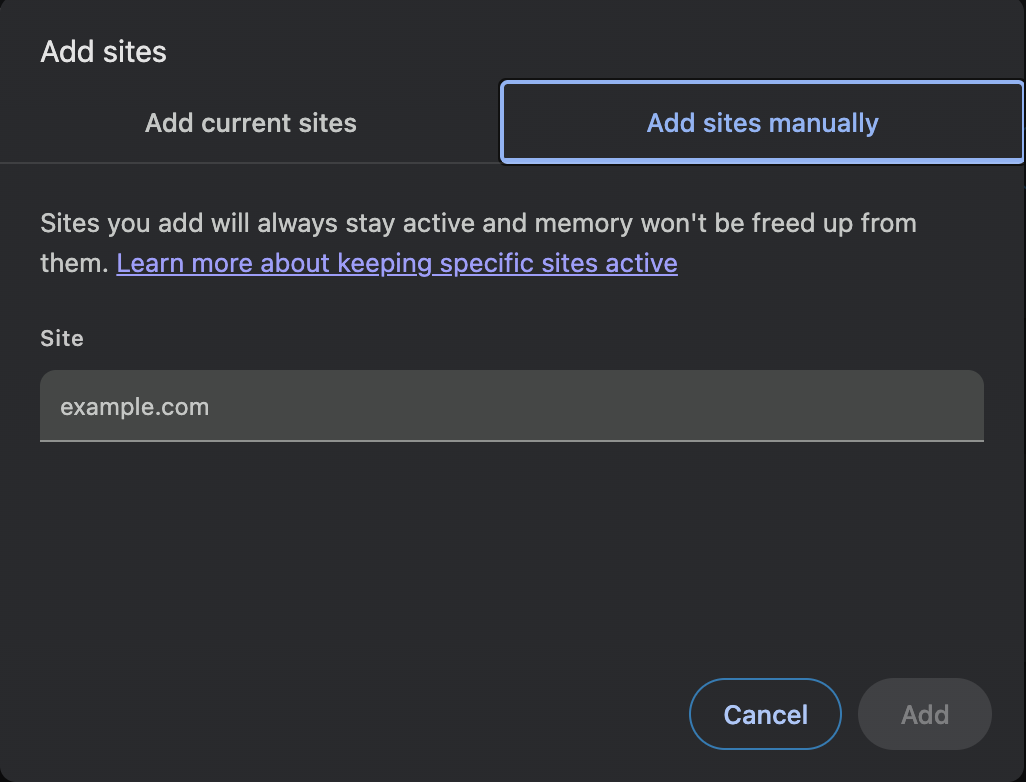

c. On the same page, manually add the URL for your Nautilus Portal under the “Always keep these sites  active” option.

D. Add your prioritised URLs under the option highlighted below. This includes the Zendesk URL, the Reporting Portal URL, and the Web Phone URL.

Example:

i. https://acme.zendesk.com/

ii. https://acme.nautilus.zone:8433/

iii. https://acme.nautilus.zone:8433/phone/





Agent Experience Upon Login

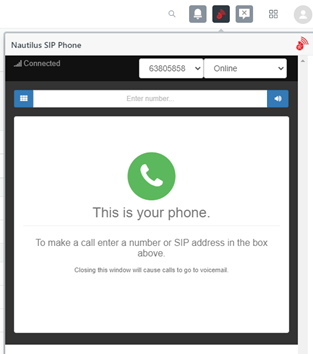

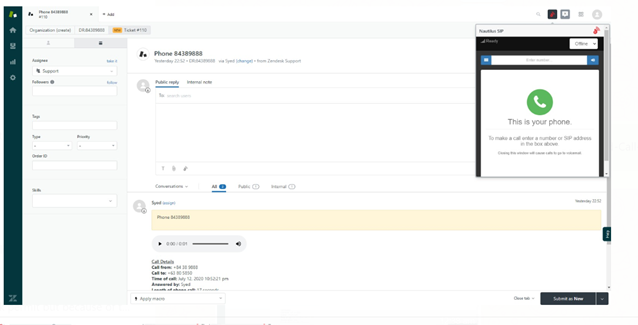

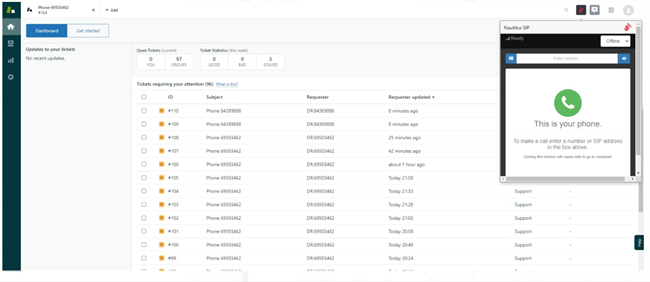

Upon login, the agent needs to ensure that the Web Phone has the indicator. Once all set, the Web Phone should show as below:

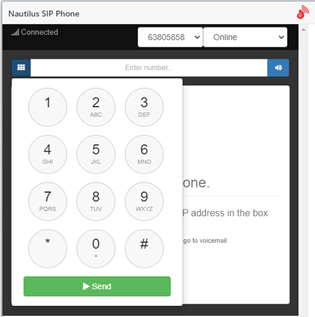

Agents can also dial by using their number pad or dial pad on their Nautilus Talk Webphone.





Troubleshooting

 If the Web Phone is not fully loaded, the user will be required to do some basic troubleshooting.

1. Click on the ‘Lock’ icon on the browser
2. Click on ‘Clear data’ to clear the browser cache and cookies.
3. Make sure that you're using the latest version of Google Chrome.
4. Check the browser settings and make sure that the permissions are set like the image below.
5. After that, reload the page by clicking CTRL + F5 button.

How to enable permissions on your browser

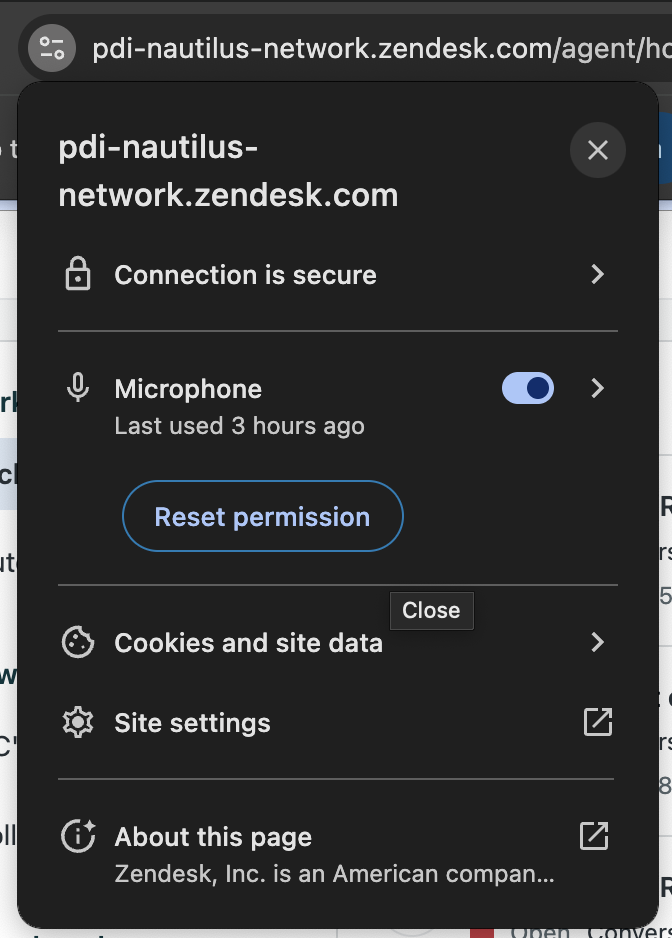

1. Click on the icon on the left of Zendesk URL
2. Select on ‘Site settings’

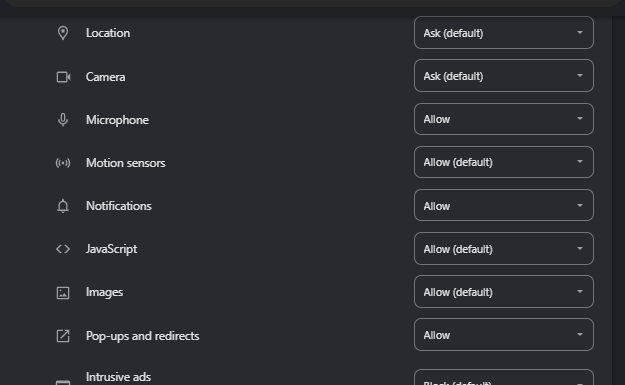

3. Under site settings, please allow Microphone, Pop-ups and redirects and Notifications

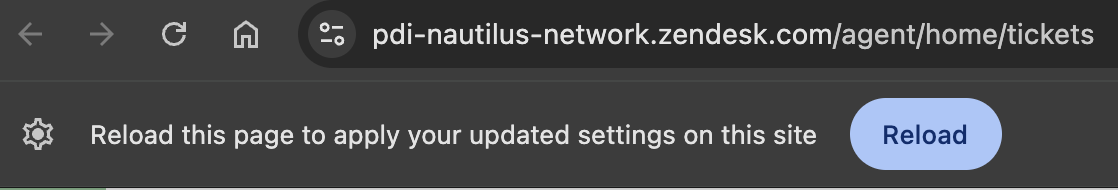

4. Head back to the Zendesk page and click on ‘Reload’

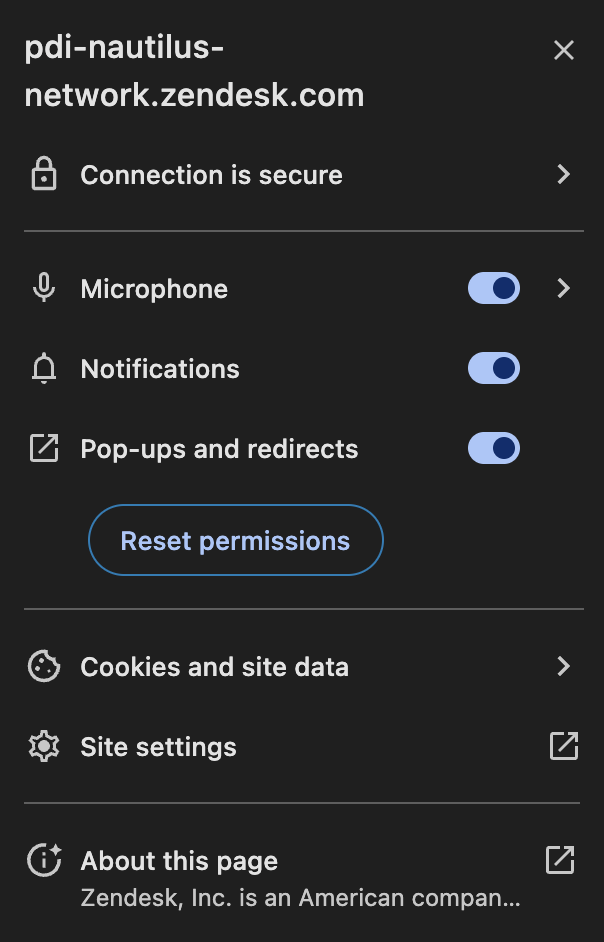

5. Confirm that the permissions are enabled by clicking on the icon to the left of the Zendesk URL.



How to clear browser cache (for Chrome)

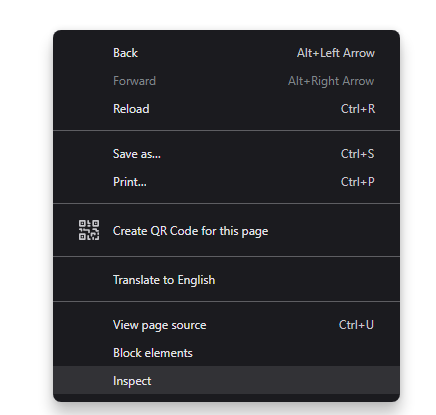

1. Right click on Zendesk page and then select “Inspect”

2. The inspect page will be open.

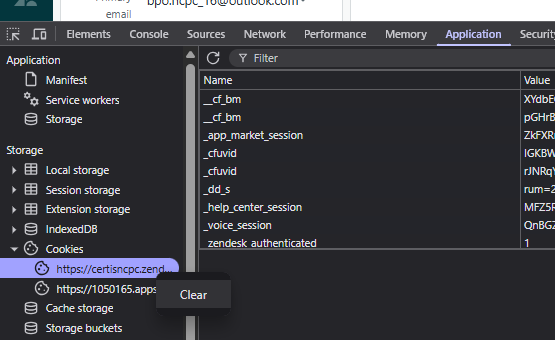

3. From the inspect page, on the top menu, click at ‘Application’
4. On the left menu, look for ‘Cookies’
5. On the Cookies, right click on Zendesk url and click on ‘Clear’
6. Without close the inspect page, right click on ‘refresh’ button and select ‘Empty Cache and Hard Reload’

7. Once completed, you can login back to your Zendesk account.



How to clear browser cache (for Firefox)

1. Right click on Zendesk page and select ‘Inspect’

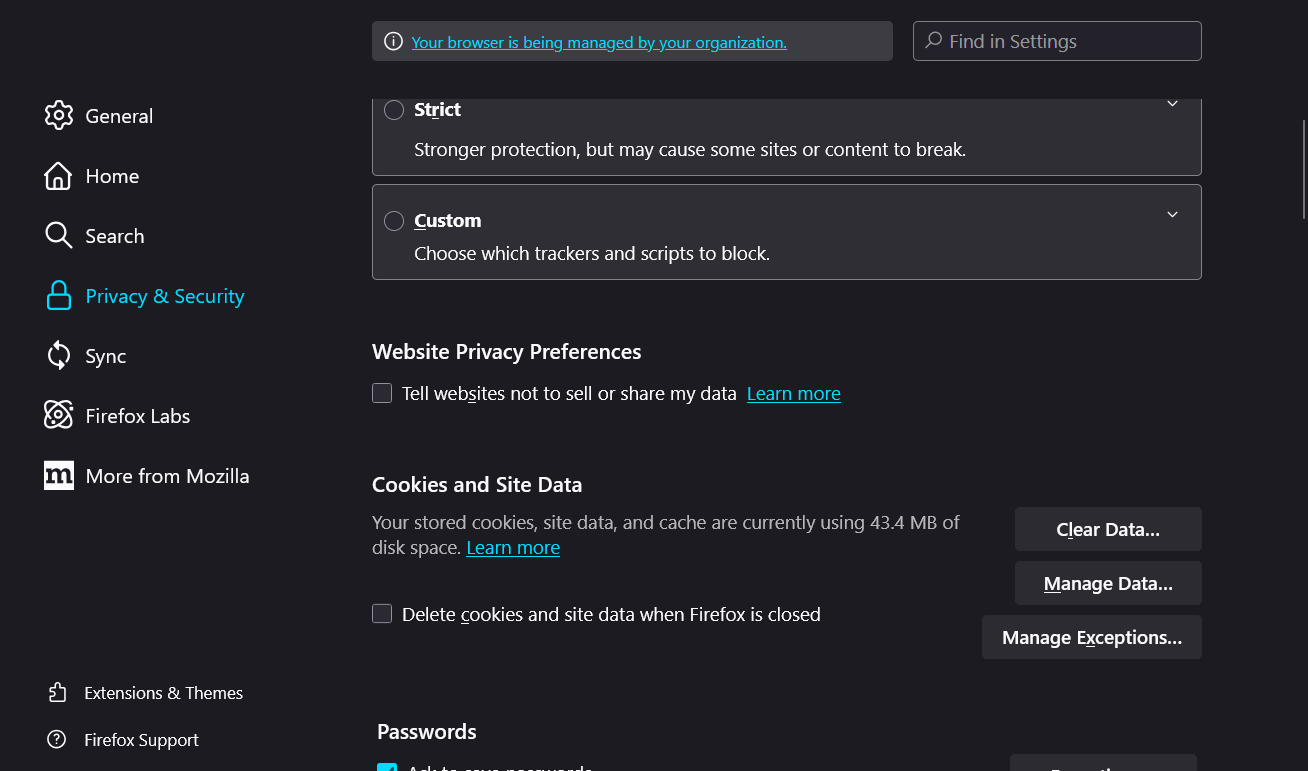

2. Go to ‘Privacy & Security’
3. Scroll to ‘Cookies and Site Data’

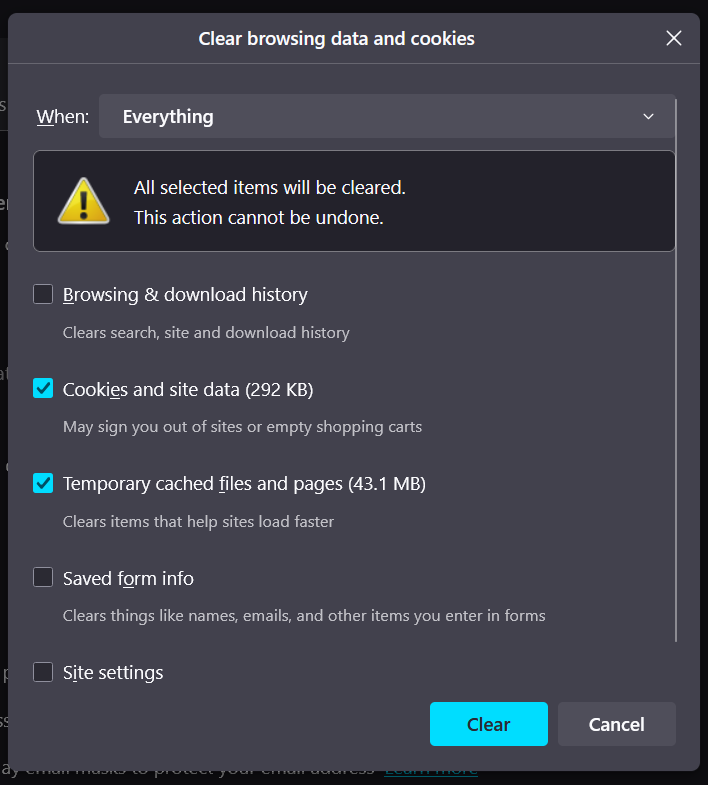

4. Click ‘Clear Data…’

5. Select ‘Everything’ and then Clear

6. Once done, hard reload the page by press Ctrl + F5 (Windows/Linux) or Cmd + Shift + R (Mac) to perform a hard reload.



Web Phone Test

• To check Agent’s extension number – Dial *65 on the Web Phone and the system will announce the agent’s extension.
• To check call latency / Echo test – Dial *43 on Web Phone and the system will provide instructions on how to check the call quality. Afterwards, the agent can start talking and they should hear an echo of their voice. If they cannot hear the echo, or the echo quality is poor, please check the internet connection. If the internet speed is good, this means there might be an in-system issue and the agent will be required to contact admin.

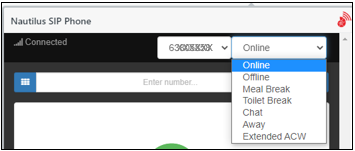

Agent Break Codes

All agents will able to change their own status by toggling to the break code that best represents their availability. Every break code toggle an agent makes on the Web Phone will be automatically logged on the Reporting Portal, reflected on the Realtime Wallboard, and affects their availability to receive a call from the queue.



The agent break codes are defined as follows:

1. Online – available
2. Meal break – unavailable
3. Toilet break - unavailable
4. Chat - unavailable
5. Away – unavailable
6. Extended ACW - unavailable
7. Offline – selected at the end of one's shift

All break codes except Online and Offline are customisable. This information flows through to the Nautilus Reporting portal – Agent Status report available to supervisors / administrators.

Agents need to change the status back to "Online" once they are ready and available to take calls.



Receiving an Inbound Call from the Queue

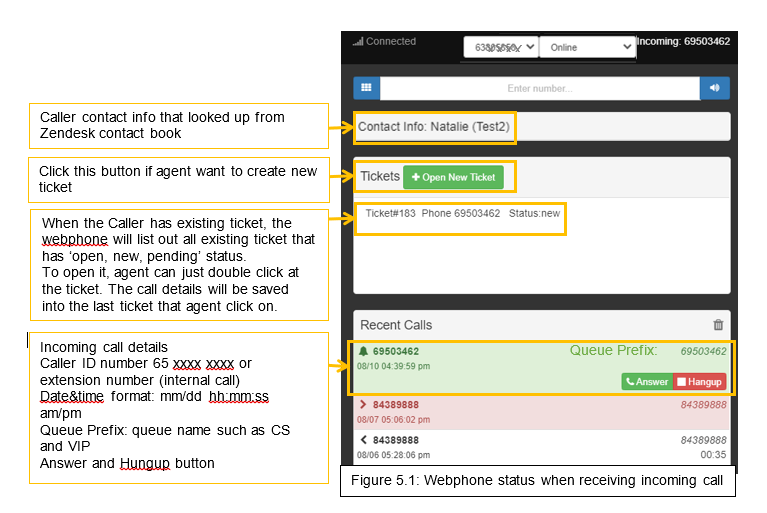

When the agent receives a call, the Web Phone will ring and will display the information of the incoming call. The image below shows the Web Phone page when an agent is online and receiving an incoming call.

When set to auto answer/auto pickup, the agent does not have to answer the call as it is automatically done by the system within the time set by management. If it's not set up to auto-answer, the agent will be required to click through the Web Phone to pick up a call.

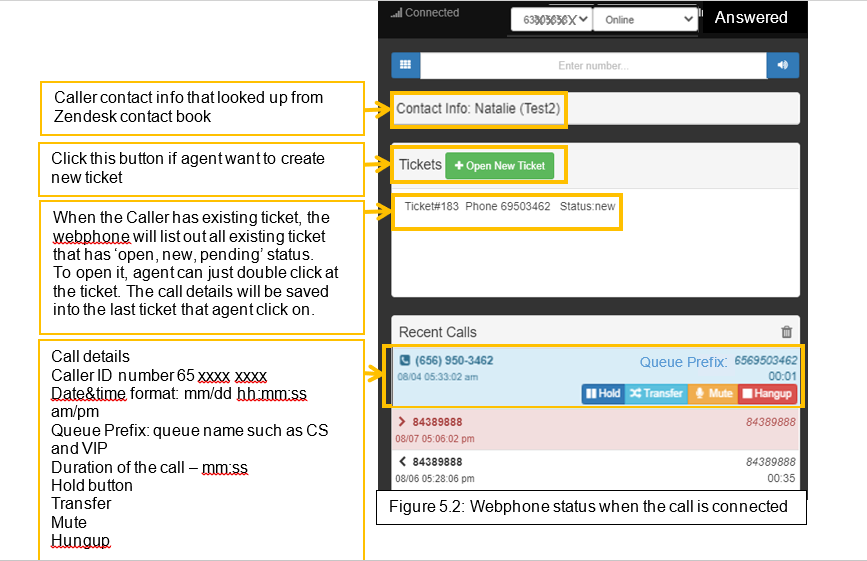

The picture below shows the Web Phone page when an agent is connected to a call.



Agent on an Active Call

An agent on an active call will show that they are "unavailable" and will not receive any calls from the queue.

Agent can Hold, Transfer, Mute and Hang-up using the active call dialog box



Call Transfers

Blind Transfer: this is when you transfer a call to a ring group or another agent without speaking to the receiving party first. Also known as a "cold transfer". Agents can initiate a call transfer by clicking the button, typing in the extension number or phone number, and clicking ‘transfer’ again to confirm the action. Upon connection, the transfer is completed and the call will be disconnected.

Attended Transfer: this action allows agents to discuss important details of the call before the transfer is completed. This is also known as a "warm transfer". To initiate a warm transfer follow the following steps:

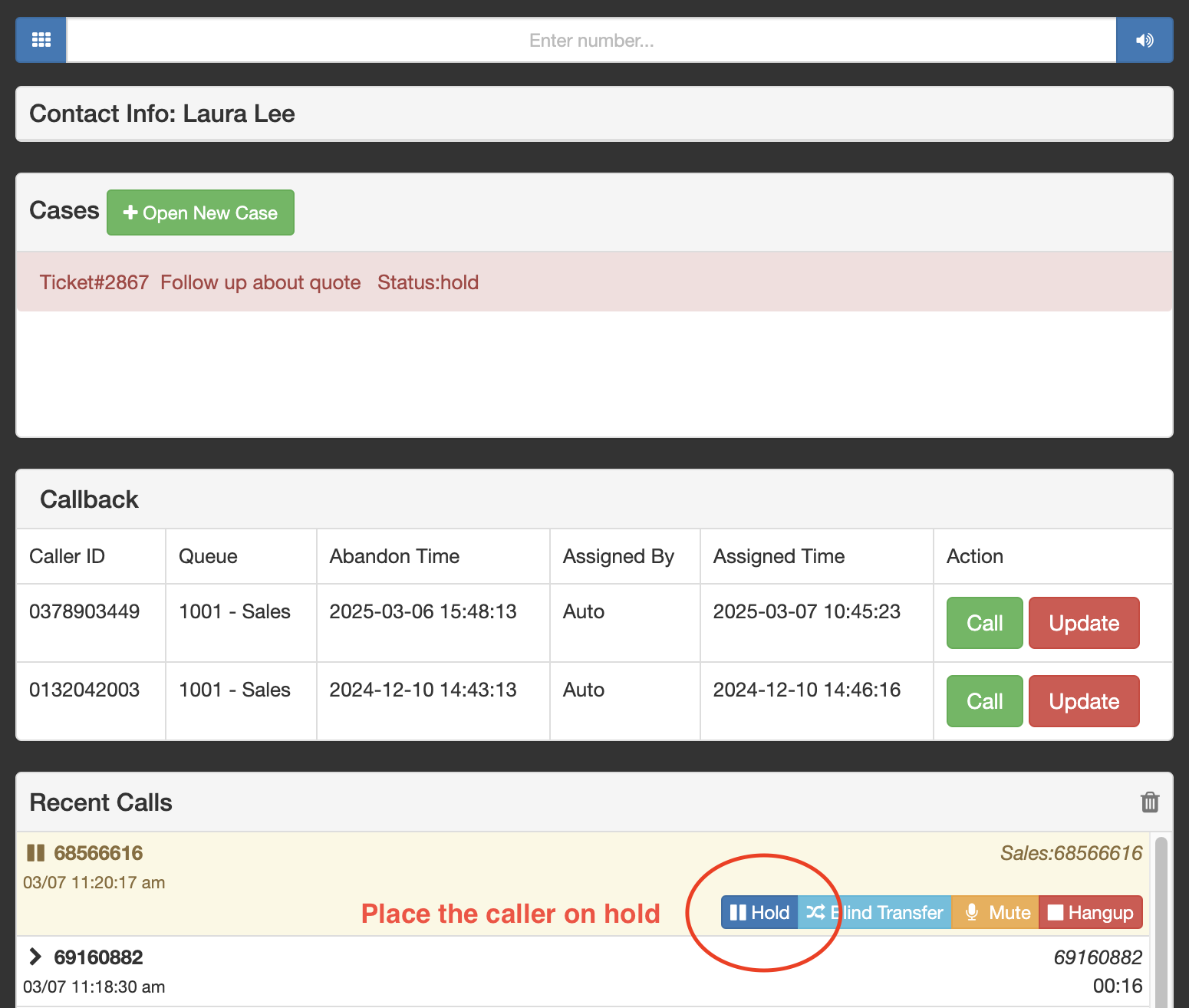

1. Place the caller on Hold.

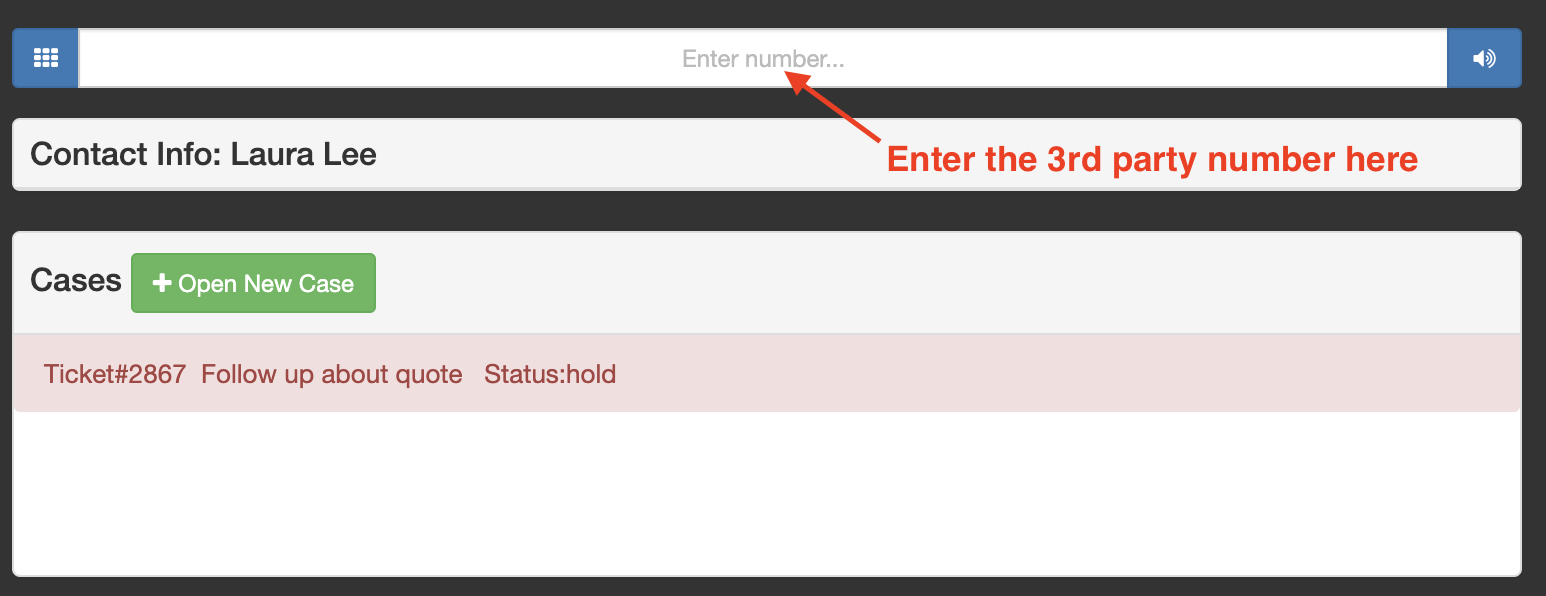

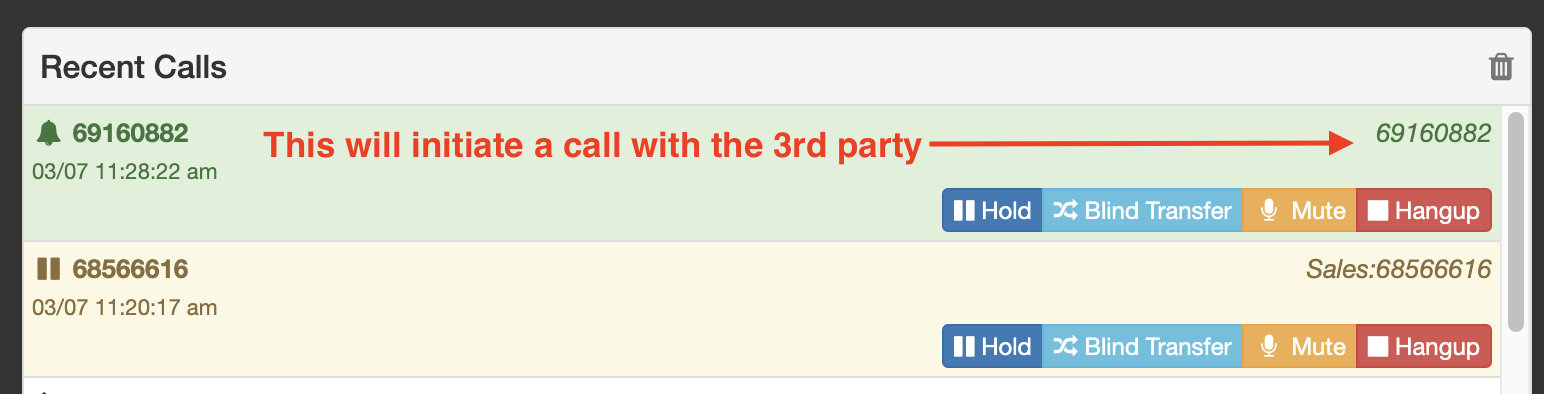

2. Enter the third party's number in the dial pad on the Web Phone. This will initiate a consultation call with the receiving party.



3. Consult with the third party about the call to be transferred. During this call the agent can handover any relevant information about the call. Upon confirmation, hangup the consultation call and go back to the customer.

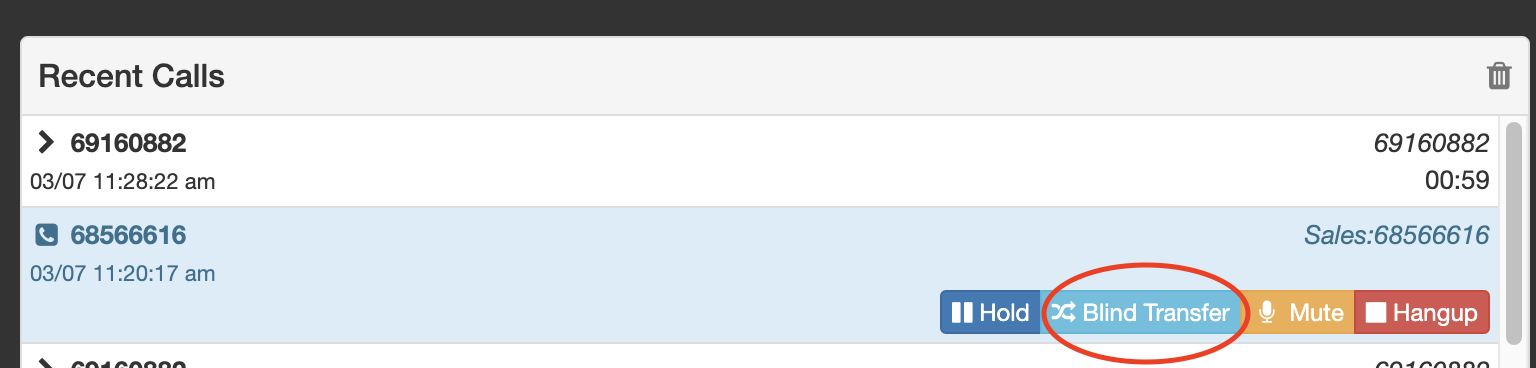

4. Go back to the caller and inform them of the impending transfer. Click the Blind Transfer button highlighted below.

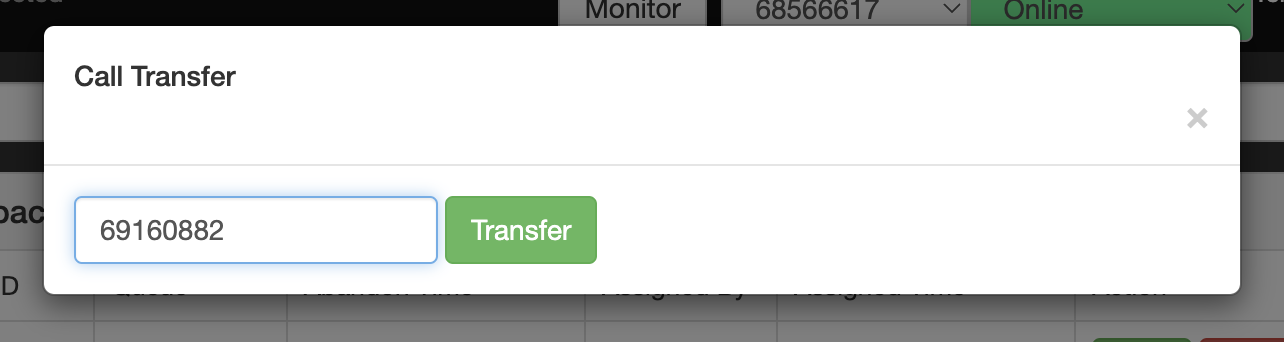

5. Enter the receiving party's extension number in the field inside the pop-up window.  Complete the process by pressing the green Transfer button.



Other Features

Mute: Tap on the to mute/unmute the call. The caller will not hear anything until the agent unmutes.

Hold/UnHold: During the call, agents can press the button to hold or resume the call at any time. Callers will hear on-hold music when an agent puts them on hold.

Hang Up: When an agent wants to hang up the call, click  button.



Open Ticket

When an agent receives and connects to an incoming call, a few scenarios can happen:

1. A caller does not have an existing ticket that has ‘open’, ‘new’ and ‘pending’ status. A new ticket will opened and created.
2. A caller doesn't have an existing ticket with "open", "new", and "pending" status and a new one isn't created automatically.  In instances like this, the agent is required to click on in order to open and create a new ticket.
3. Caller has an existing ticket that has ‘open’, ‘new’ and ‘pending’ status. Agents can either double click on an existing ticket or create a totally new one. Agents can also switch to another ticket if the previous ticket is not related. Call log and call recording will be updated on the last ticket selected by an agent.



Performing an Outbound Call

To make outbound calls, agents can type the phone number here  and press ‘Enter’. They can also open the dial pad, input the the phone number and click to perform the call.

After an outgoing call is connected, Zendesk will automatically create a ticket.



Click to Call via Ticket

Agents can also make an outbound call via ‘click to call’ on the ticket itself. Agent can click on the icon and it will display the phone number. Agents can perform the call by clicking on the phone number.

An outgoing call is then made via Nautilus Web Phone. When the call is ended, it will update the call details and call recording under the same ticket.

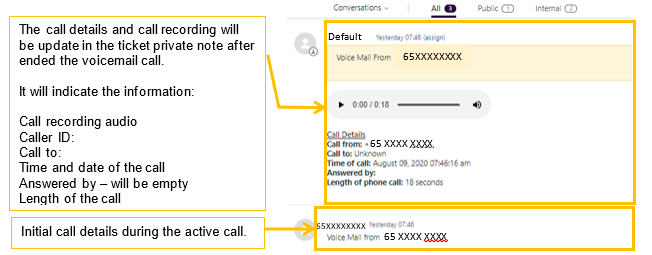

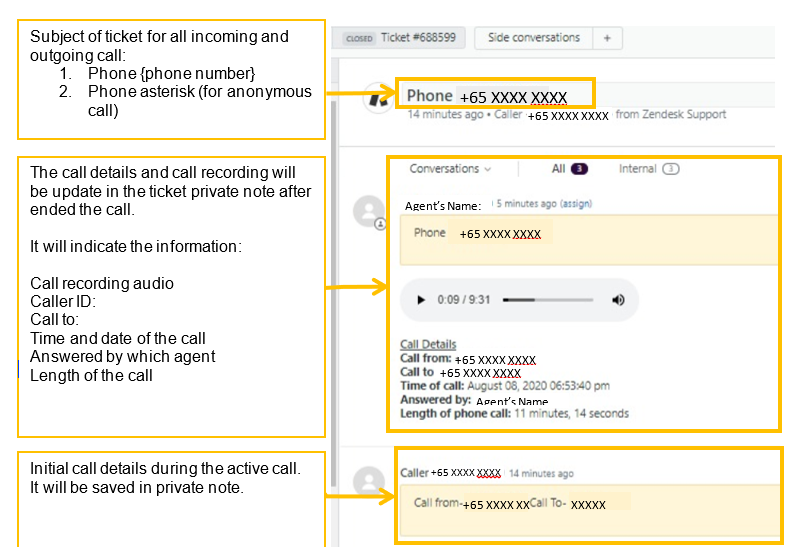

Call Details and Call Recording Update in Ticket

A ticket is created when an agent is on an active call, and it will have the initial call details. Once the call ends, the ticket will be automatically updated and auto-assigns the agent that handled the call. Full call details and the call recording should reflect on the ticket within a few seconds.





Anonymous Call and Ticket Handling

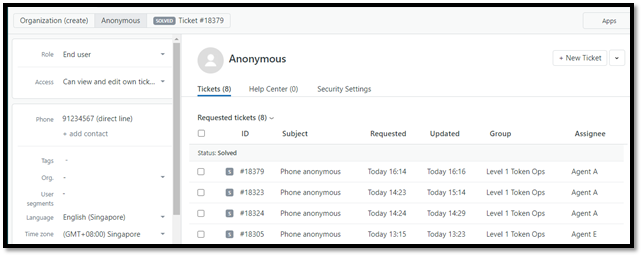

When an agent receives a call from an anonymous number, said agent is required to create a new ticket after picking up the call. Never choose an existing ticket as it will tag the call under "anonymous contact".

An agent can try to ask for a caller's phone number in case the call disconnects. It's okay if they decline.

If the caller provides a phone number, however, the agent needs to change the ticket subject to ‘’Phone {phone number}’’, and leave a private note inside the ticket with the number on it.

Right below the ticket subject, click on ''change''

On the Requester field on the left, click 'add user'. Type the caller's name and click ''add''.

The ticket will be tagged to the caller's contact instead of as an "anonymous contact". Add the caller's phone number accordingly.





Voicemail

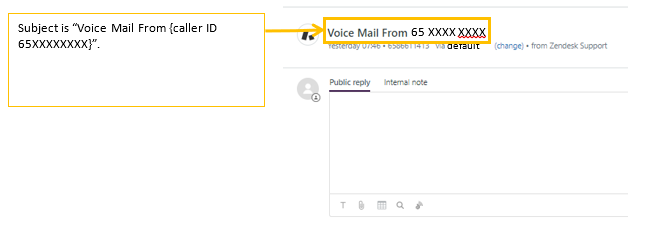

When a caller leaves a voicemail, it will trigger a new ticket.



Internal Call

Agents can perform internal calls by dialing the extension numbers (3 or 4 digits number) directly. Internal calls do not create tickets.



User Responsibilities

1. All agents are required to change their agent status to ‘Offline’ before logging out from Zendesk.
2. Agents are required to setup secure passwords; they should be a combination of upper-case letters, lower-case letters, numbers, and a symbol. For example: wTet607s@&
3. Agents must always log out from Zendesk when they are not using the system.





If you have any questions or need assistance, please feel free to drop your message at support@nautilus-network.com. We'll be happy to help you!
